Results and Provenance

When your analysis runs, each module can produce results – histograms, cutflows, event counts, saved arrays, etc. These results are collected into a tree structure and serialized to disk as .result files. Understanding this system is important for both debugging your analysis and writing postprocessing configurations.

The Result Tree

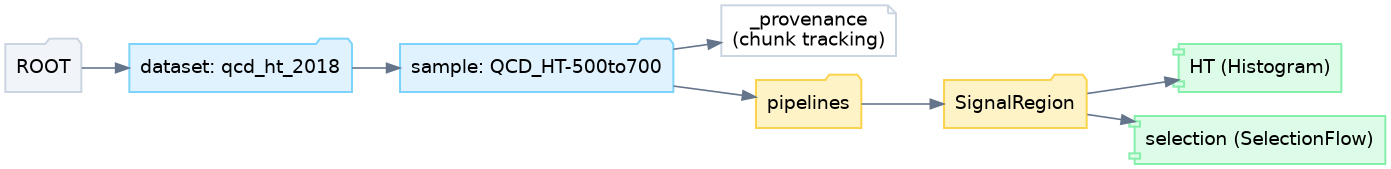

Results are organized in a tree of ResultGroup objects:

ROOT
\-- dataset_name (e.g., "qcd_ht_2018")
    \-- sample_name (e.g., "QCD_HT-500to700_...")
        +-- _provenance   (tracks which file chunks were processed)
        \-- pipelines
            \-- pipeline_name (e.g., "SignalRegion")
                +-- HT           (a Histogram)
                +-- selection    (a SelectionFlow)
                \-- ...

Each ResultGroup is a named container that holds other results or sub-groups. The _provenance entry is special – it records exactly which file chunks were processed, which is used by the check and patch commands.

Result Types

The framework provides several built-in result types. Each type knows how to merge with another result of the same type (via +=) and how to scale (for MC normalization).

Type	Description	Responds to iscale()?
Histogram	A hist.Hist with axes. The standard output from makeHistogram().	Yes (scales bin contents)
UnscaledHistogram	Like Histogram but ignores scaling. Used for raw event counts.	No
SelectionFlow	Cutflow data: sequential cut yields, N-1 yields, and single-cut yields.	Yes
RawSelectionFlow	Like SelectionFlow but not scaled. For unweighted cutflows.	No
ScalableArray	An awkward or numpy array that scales with luminosity.	Yes
RawArray	An array that is not scaled.	No
SavedColumns	A dictionary of named arrays (e.g., for saving event-level data to disk).	Partial (adds a “Scale” column)
SavedFiles	References to files written to disk by skimming modules.	No
RawEventCount	A simple event count, unscaled.	No
ScaledEventCount	A simple event count that scales with luminosity.	Yes

Loading Results

Results can be loaded in Python or browsed interactively.

Python interface:

from analyzer.core.results import loadResults

results = loadResults(["output/**/*.result"])

# Navigate the tree
for dataset_name in results.keys():
    dataset = results[dataset_name]
    for sample_name in dataset.keys():
        sample = dataset[sample_name]
        # Access a specific result
        if "pipelines" in sample.keys():
            pipeline = sample["pipelines"]["SignalRegion"]
            ht_hist = pipeline["HT"]

Interactive browser:

./osca browse 'output/**/*.result'

The browser provides a terminal UI for navigating the result tree. When run in this way, the samples will not be merged into datasets. If you want to merge samples into datasets, then add the --merge-datasets flag.

Merging and Scaling

When loading results from multiple .result files, the framework automatically merges them by adding together results with the same path in the tree. Provenance tracking ensures that overlapping chunks are detected and raise an error.

For postprocessing, results typically need to be merged and scaled to physical units. The mergeAndScale() function does this:

from analyzer.core.results import loadResults, mergeAndScale

results = loadResults(["output/**/*.result"])
scaled = mergeAndScale(results)

For each dataset, this function:

1. Iterates over all samples in the dataset.

2. For MC samples: computes a scale factor of lumi * cross_section / processed_events and applies it to all results.

3. For Data samples: computes expected_events / processed_events (should be 1.0 if fully processed).

4. Merges all scaled samples within a dataset into a single result.

After mergeAndScale(), the result tree has one entry per dataset (rather than one per sample), and histograms contain physically meaningful yields.

Serialization Format

Result files use a custom packed format to allow for fast inspection of the file without needing to deserialize the entire file.

1. A magic identifier (sstopresult)

2. A 4-byte header giving the size of the peek data

3. A pickle of the result summary (lightweight, no large arrays)

4. An LZ4-compressed pickle of the full result data

This two-part format allows the check command to quickly peek at result metadata (provenance, structure) without decompressing the full data. The browse command with --peek uses this same mechanism for fast inspection.

Checking Completeness

The check command compares the provenance in your result files against the expected samples:

./osca check -c config/analysis.yaml output/**/*.result --only-bad

For each sample, it reports:

• Expected number of events (from the dataset definition)

• Found number of events (from the provenance in result files)

• Completion fraction

Samples with less than 100% completion can be reprocessed using the patch command.
