Model Plot¶

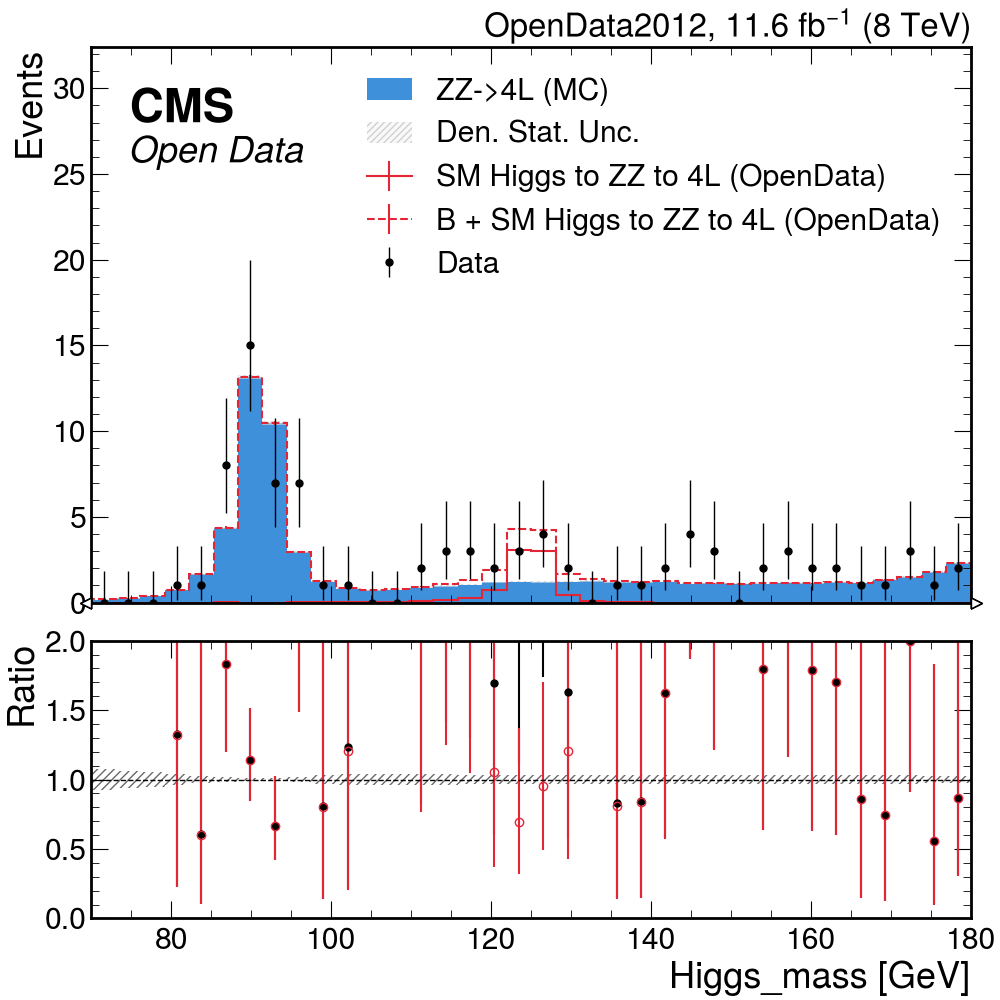

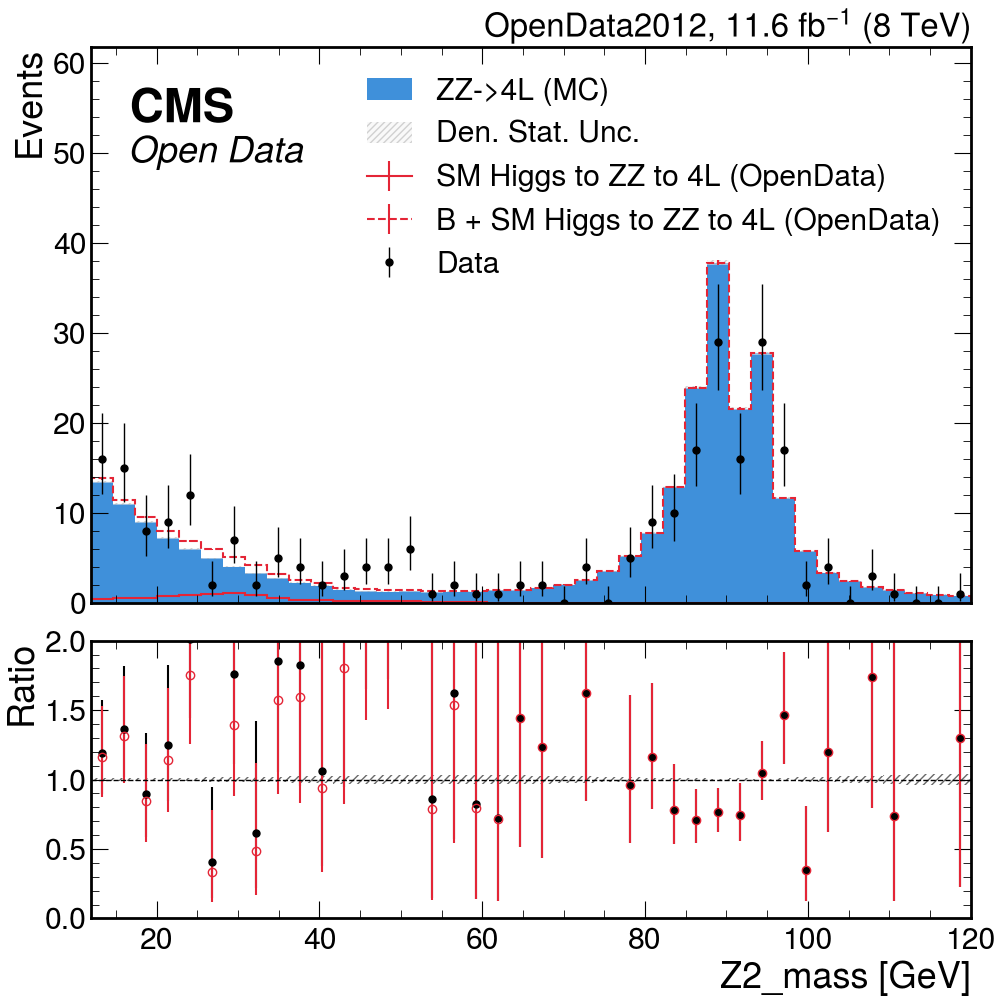

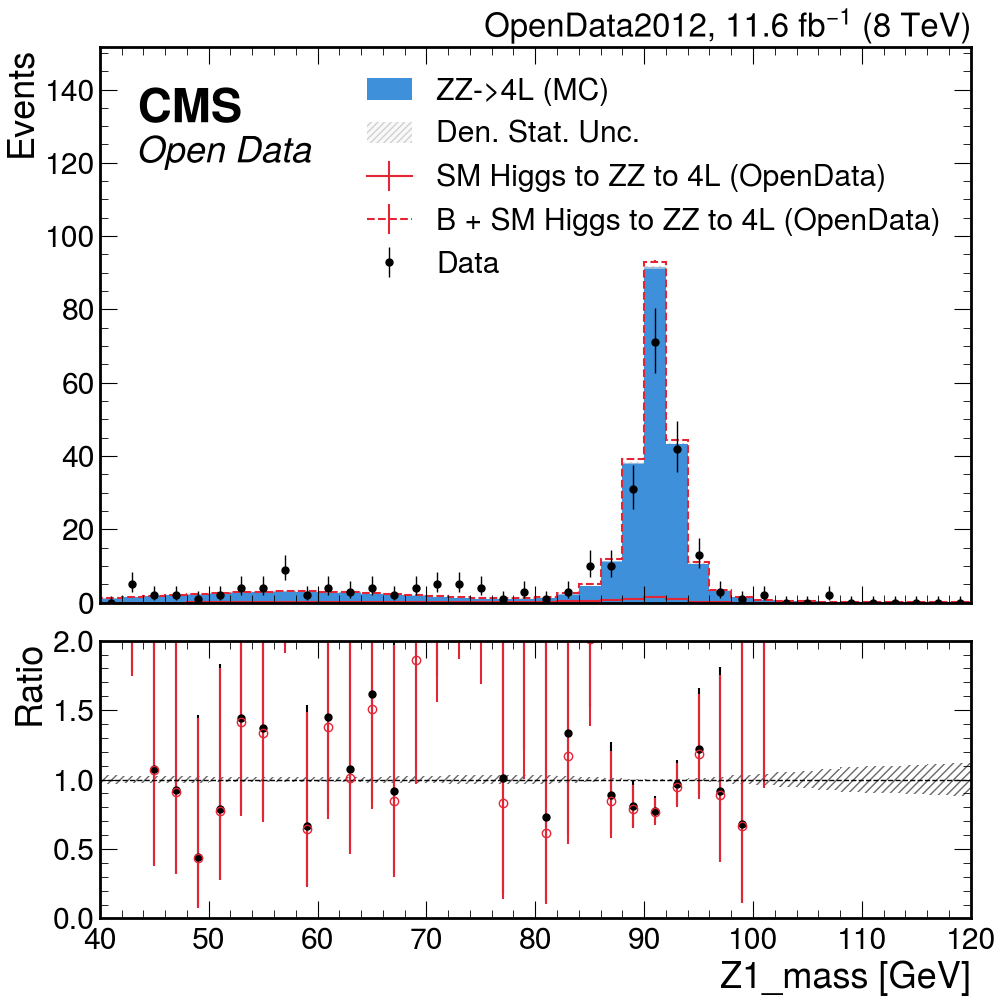

The ModelPlot produces a plot for comparing some signal model to the observed data.
Postprocessing:
default_plot_config:
cms_text: "Open Data"
image_type: ".png"
default_style_set:
styles:
- pattern:
sample_type: Data
style:
plottype: errorbar
color: black
marker: 'o'
- pattern:
dataset_name: '*SMHiggsToZZTo4L*'
style:
plottype: step
color: cms-red
linewidth: 2
- pattern:
name: '*'
style:
plottype: fill
processors:
- name: ModelPlot
inputs:
- "*/*/*/HiggsMass"
- "*/*/*/Z1Mass"
- "*/*/*/Z2Mass"
structure:
group: {"era.name": "*", "name": "*"}
subgroups:
background:
select: {dataset_name: "opendata_ZZTo*"}
transforms:
- name: SumHistograms
sum_match_pattern: {pipeline: "*"}
new_meta_fields: {title: "ZZ->4L (MC)"}
signal:
select: {dataset_name: "*SMHiggsToZZTo4L*"}
transforms:
- name: SumHistograms
sum_match_pattern: {pipeline: "*"}
data:
select: {dataset_name: "*Double*"}
transforms:
- name: SumHistograms
sum_match_pattern: {pipeline: "*"}
new_meta_fields: {title: "Data"}
transforms:
- name: SelectAxesValues
select_axes_values:
variation: [central]
output_name: "{prefix}/ratio_{era.name}_{name}.png"
